DFIG Wind Turbine Simulation: Modeling, Control & Grid Integration

System Overview

What is a DFIG Wind Turbine?

A DFIG wind turbine uses a doubly-fed induction generator connected to a partially rated power converter. This setup enables bidirectional power flow and precise control over both active and reactive power, making it ideal for grid-connected wind energy applications.

Purpose of the Simulation

The DFIG wind turbine simulation is designed to:

• Evaluate turbine performance under varying wind and grid conditions
• Test different control strategies for improved efficiency and grid stability

• Simulate fault-ride-through (FRT) capabilities for real-world fault preparedness

Key Features

Maximum Power Point Tracking (MPPT)

Advanced MPPT algorithms allow optimal energy extraction across different wind speeds.
➡️ HIL/PHIL Benefit: Enables real-time testing of MPPT methods for enhanced performance.

Independent Active and Reactive Power Control

Using vector control techniques, the turbine regulates active and reactive power independently, improving voltage stability and grid support.
➡️ HIL/PHIL Benefit: Allows pre-deployment validation of grid support functionalities.

Grid Integration and Fault-Ride-Through (FRT) Capability

Ensures stable operation under voltage dips and grid disturbances, enhancing wind farm reliability.
➡️ HIL/PHIL Benefit: Simulates real-world grid faults to optimize turbine response strategies.

Variable-Speed Operation

DFIG wind turbines are designed to operate over a broad range of rotor speeds, allowing them to continuously adjust their operating point based on wind conditions. This variable-speed capability enables the turbine to track the optimal tip-speed ratio, which maximizes aerodynamic efficiency and overall energy capture. Compared to fixed-speed systems, DFIG turbines extract more power from low and medium wind speeds, improving the capacity factor and increasing annual energy production (AEP). This makes them especially suitable for sites with fluctuating wind profiles.

Reactive Power Control

One of the standout features of DFIG wind turbines is their ability to independently manage reactive power through their grid-side converter. This enables dynamic voltage support and real-time reactive power compensation, which are critical for maintaining grid stability—especially in weak or remote networks. DFIG turbines can participate in grid ancillary services, helping to maintain voltage profiles and power quality without the need for external reactive power compensation equipment. This not only reduces operational costs but also enhances compliance with evolving grid codes and regulations.

Reduced Mechanical Stress

By enabling smooth acceleration and deceleration in response to changing wind speeds, DFIG turbines minimize sudden mechanical loads on key components such as the gearbox, blades, and drive shaft. This results in reduced fatigue and lower maintenance requirements over the turbine’s lifetime. The flexible speed operation also helps avoid resonance and mitigates torsional oscillations, enhancing the long-term structural integrity of the wind turbine. Ultimately, this translates into lower lifecycle costs and increased turbine availability, making DFIG systems more reliable and durable in the field.

Cost-Effective

DFIG wind turbines provide an optimal balance between performance and investment by requiring only partially rated power converters—typically 25–30% of the generator rating. This significantly reduces the cost of the power electronics compared to full-converter systems like permanent magnet synchronous generators (PMSGs). In addition to lower upfront capital expenditure (CAPEX), DFIG systems benefit from mature technology, widely available components, and lower operation and maintenance (O&M) costs. These advantages make them a financially attractive choice for both large-scale wind farms and smaller grid-connected installations.

Simulation Objectives

This simulation helps evaluate:

• Efficiency of active/reactive power control methods.
• Impact of grid disturbances on wind turbine performance.
• Response of the generator under transient and steady-state conditions.
  ➡️ HIL/PHIL Benefit: Enables accurate real-world testing before hardware implementation.

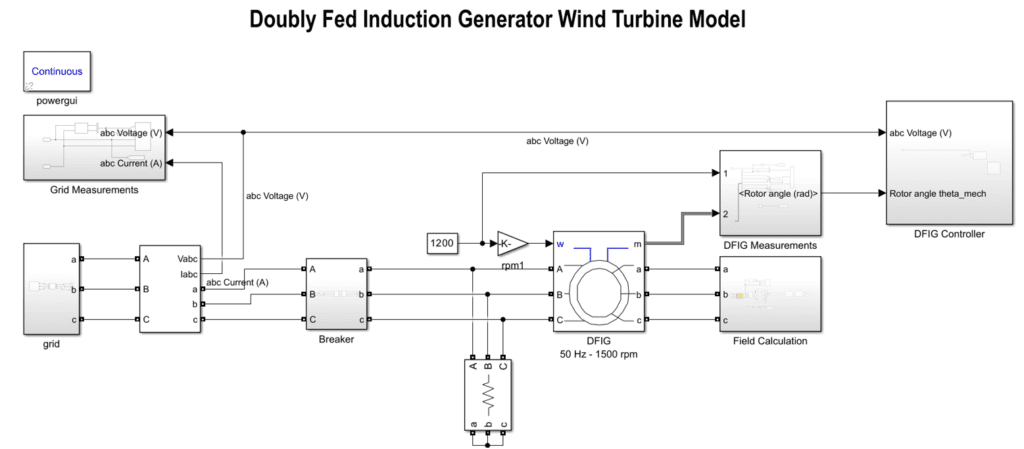

Technical Description

System Configuration

• Input: Wind energy converted into mechanical power through a variable-speed wind turbine.
• Output: Electrical power fed to the grid through a DFIG-based generation system.
• Power Stage: Rotor-side and grid-side converters for dynamic power control.

Control Methodology

• MPPT Algorithms: Tip Speed Ratio (TSR), Optimal Torque Control (OTC), and Power Signal Feedback (PSF).
• Vector Control: Rotor-side and grid-side converters for decoupled power regulation.
• Fault-Ride-Through (FRT): Low Voltage Ride-Through (LVRT) and reactive power support.
  ➡️ HIL/PHIL Benefit: Enables real-time evaluation of different control strategies.

Advantages of DFIG Wind Turbines

• Variable Speed Operation: Enhances energy capture efficiency.
• Grid Support Capabilities: Provides reactive power compensation and frequency regulation.
• Lower Converter Ratings: Reduces cost compared to full-power converter systems.
  ➡️ HIL/PHIL Benefit: Enables fine-tuning of control algorithms for improved reliability.

Applications

Onshore Wind Farms

Large-Scale Power Generation: DFIG wind turbines are commonly used in onshore wind farms to generate electricity for the grid. Their variable-speed operation and ability to control reactive power make them ideal for large-scale power generation.

Grid Stability: DFIG turbines can provide grid support services, such as voltage regulation and frequency control, enhancing the stability of the power grid.

Offshore Wind Farms

High-Efficiency Power Generation: DFIG wind turbines are used in offshore wind farms to harness strong and consistent wind resources. Their ability to operate at variable speeds maximizes energy capture.

Reduced Maintenance: DFIG turbines are designed to handle harsh offshore conditions, reducing the need for frequent maintenance and improving reliability.

Hybrid Energy Systems

Wind-Solar Hybrid Systems: DFIG wind turbines are integrated with solar PV systems to create hybrid energy systems that provide a more stable and reliable power supply.

Wind-Diesel Hybrid Systems: In remote areas, DFIG turbines are combined with diesel generators to reduce fuel consumption and provide a continuous power supply.

Microgrids

Islanded Microgrids: DFIG wind turbines are used in islanded microgrids to provide reliable power to remote communities and industrial facilities.

Grid-Connected Microgrids: DFIG turbines enhance the stability and efficiency of grid-connected microgrids by providing flexible power generation and grid support services.

Industrial Power Supply

Manufacturing Facilities: DFIG wind turbines are used to supply power to large industrial facilities, reducing energy costs and carbon footprint.

Mining Operations: In remote mining sites, DFIG turbines provide a reliable and sustainable power source, reducing reliance on diesel generators.

Agricultural Applications

Irrigation Systems: DFIG wind turbines are used to power irrigation systems in agricultural areas, providing a sustainable and cost-effective energy solution.

Rural Electrification: DFIG turbines are deployed in rural areas to provide electricity for farming operations and rural communities.

Water Pumping and Desalination

Water Pumping: DFIG wind turbines are used to power water pumping systems for agricultural, industrial, and municipal applications.

Desalination Plants: DFIG turbines provide a sustainable energy source for desalination plants, supporting water supply in arid regions.

Simulation Benefits

With this DFIG wind turbine simulation, users can:

• Analyze turbine dynamics and overall energy efficiency
• Optimize control strategies for maximum power capture
• Evaluate grid integration and fault recovery mechanisms


Evaluate grid integration and fault response techniques.
➡️ HIL/PHIL Benefit: Ensures a seamless transition from simulation to hardware testing.
